E-ROBOT+3
E-ROBOT+3 Series ensures that you always get the same quality, fast and precise painted products. It increases production efficiency and saves energy and paint.
Models (4)
E-ROBOT+3 X
ModelHorizontal axis coating robot for automatic guns. Performs forward and backward movements precisely and efficiently. Timing belt and special chassis design offers long-lasting use and easy maintenance.
- Axis
- Horizontal
- Stroke Lengths
- 1000–1500 mm
- Load Capacity
- up to 50 kg
- Operating Modes
- Oscillation and Position
- Compatible
- E-SENSE+3
- Features
- Remote adjustment, counterweight balance, homogeneous painting results

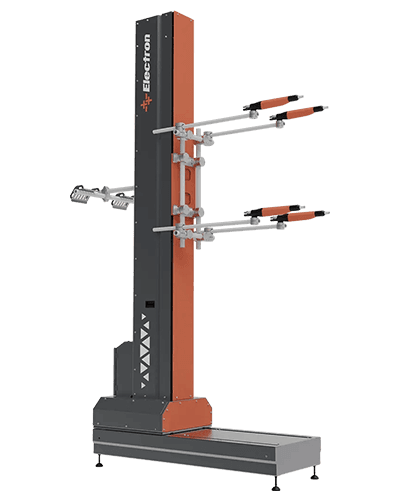

E-ROBOT+3 Z
ModelVertical axis coating robot for automatic guns. Delivers high-efficiency painting with precise vertical movement. Timing belt design provides long-lasting use and easy maintenance.
- Axis
- Vertical
- Stroke Lengths
- 1200–2700 mm
- Load Capacity
- up to 50 kg
- Operating Modes
- Oscillation and Position
- Compatible
- E-SENSE+3
- Features
- Remote adjustment, counterweight balance, asynchronous motor

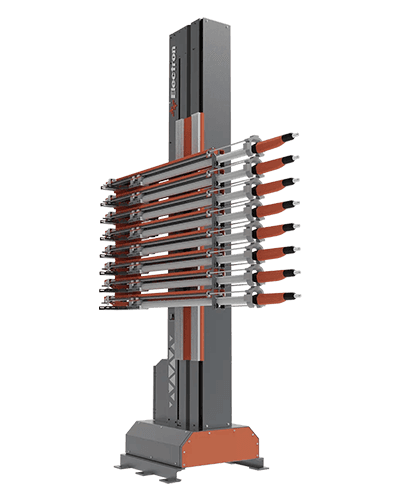

E-ROBOT+3 3D
ModelVertical axis painting robot with contour detection system. Works integrated with E-ROBOT+3 AXIS independent gun systems. Offers low maintenance requirements and high carrying capacity.
- Axis
- Vertical with contour detection
- Vertical Gun Spacing
- 130 mm
- Payload per Axis
- up to 14 kg
- Compatible
- E-SENSE+3 part detection
- Features
- Precise position and speed control, serial communication for monitoring

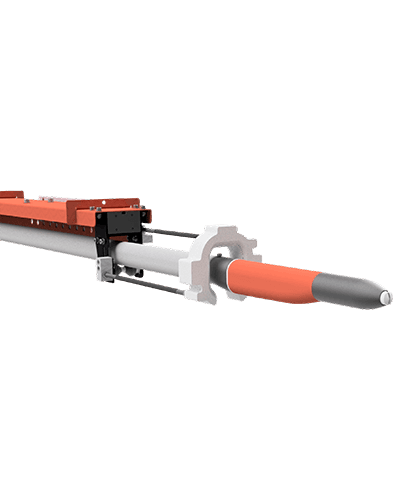

E-ROBOT+3 AXIS
ModelSingle gun movement system for parts with complex geometries requiring high precision and homogeneous coating quality. Servo motor and timing belt mechanism ensures smooth and repeatable movement.
- Type
- Single gun movement
- Gun Capacity
- Up to 8 guns via E-AXIS+3
- Drive
- Servo motor with timing belt
- Features
- Smooth/linear flow design, high repeatability, quiet operation, effective long and short stroke
Frequently Asked Questions & Service Details
PT Solusi Rekatama Makmur is the sole and EXCLUSIVE Authorized Distributor for Electron Powder Coating Systems throughout all of Indonesia, supplying 120kV electrostatic spray guns, automatic booths, reciprocators, and genuine spare parts.
